agentregistry
Agents
Add MCP servers

Add MCP servers

Give an agent access to the tools that are exposed on an MCP server.

Before you begin

  1. Follow the Get started guide to set up agentregistry and start the agentregistry daemon.
  2. Create an agent.
  3. Create an MCP server.
  4. Publish an MCP server.

Add MCP server

  1. List the MCP servers that are published in agentregistry.

    arctl mcp list

    Example output:

    NAME                VERSION   TYPE   PUBLISHED   DEPLOYED   UPDATED
user/my-mcp-server  0.1.0     oci    True        False      7s

  2. Add the MCP server to the myagent agent that you created as part of the before you begin steps. This command opens an interactive dialog in your terminal.

    arctl agent add-mcp --project-dir myagent

  3. Go through the interactive dialog.

    1. Use the arrow keys to go to 3. Registry (pull published MCP server from registry). This option allows you to select an MCP server that you previously published to the registry. Press the return key to continue.
    2. Enter http://localhost:12121 as the registry URL and press the return key.
    3. Select the MCP server that you published to agentregistry and the version you want to use.
    4. Select true in the Prefer remote MCP server dialog.
    5. Enter the following environment variables. By default, the MCP server scaffolding assumes that you want to run the MCP server with stdio. However, streamable HTTP is required to successfully connect to the MCP server from the agent.
      Key Value
      MCP_TRANSPORT_MODE http
      HOST 0.0.0.0
    6. Enter my-mcp-server as the MCP server name and press the return key to exit the wizard.

    Example output:

    ✓ Added MCP server 'my-mcp-server' (registry) to agent.yaml

  4. Verify that your MCP server tool reference is added to the agent by reviewing the agent definition in the agent.yaml file.

    cat myagent/agent.yaml

    Example output:

    agentName: myagent
image: ghcr.io/myagent:latest
language: python
framework: adk
modelProvider: gemini
modelName: gemini-2.0-flash
description: ""
mcpServers:
    - type: registry
      name: my-mcp-server
      env:
        - MCP_TRANSPORT_MODE=http
        - HOST=0.0.0.0
      registryURL: http://localhost:12121
      registryServerName: user/my-mcp-server
      registryServerVersion: 0.1.0
      registryServerPreferRemote: true

  5. Build the agent image.

    arctl agent build myagent

  6. Run the agent. Wait for the agent dialog to open.

    arctl agent run myagent

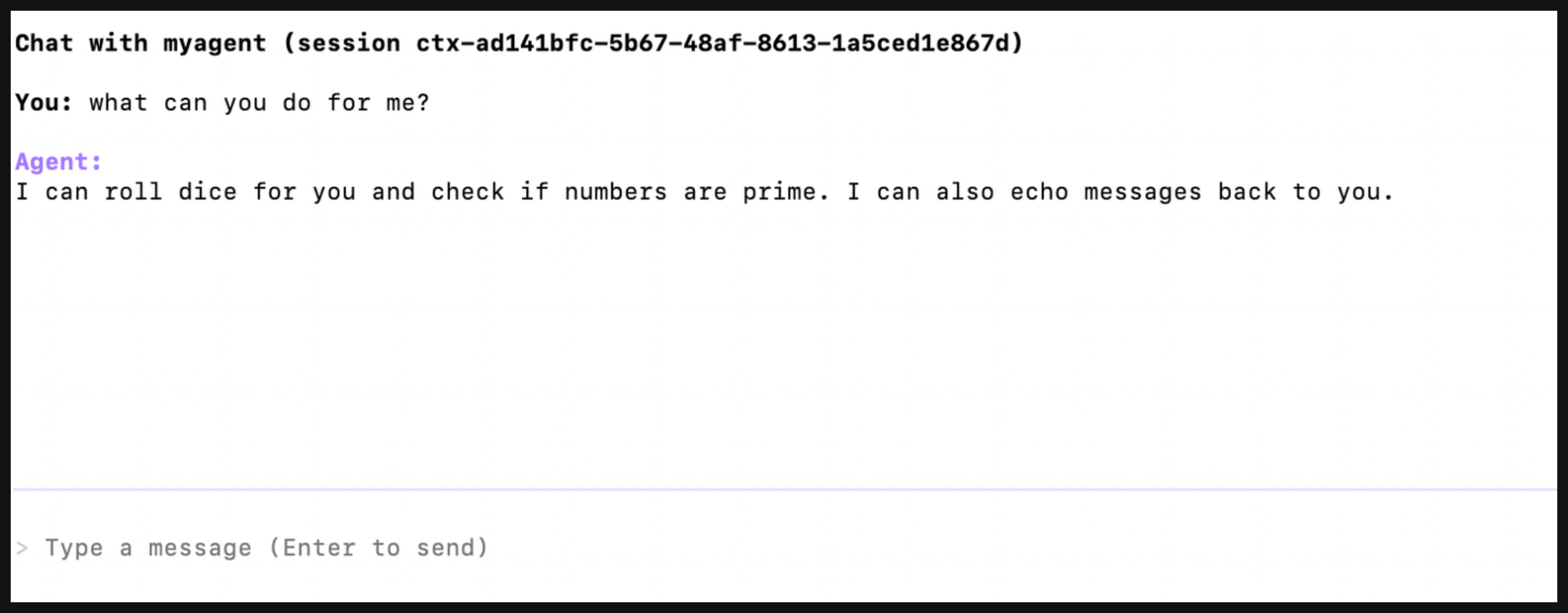

  7. Ask the agent what it can do for you. Verify that the agent offers the ability to roll a dice, check prime numbers, and echo back a message.

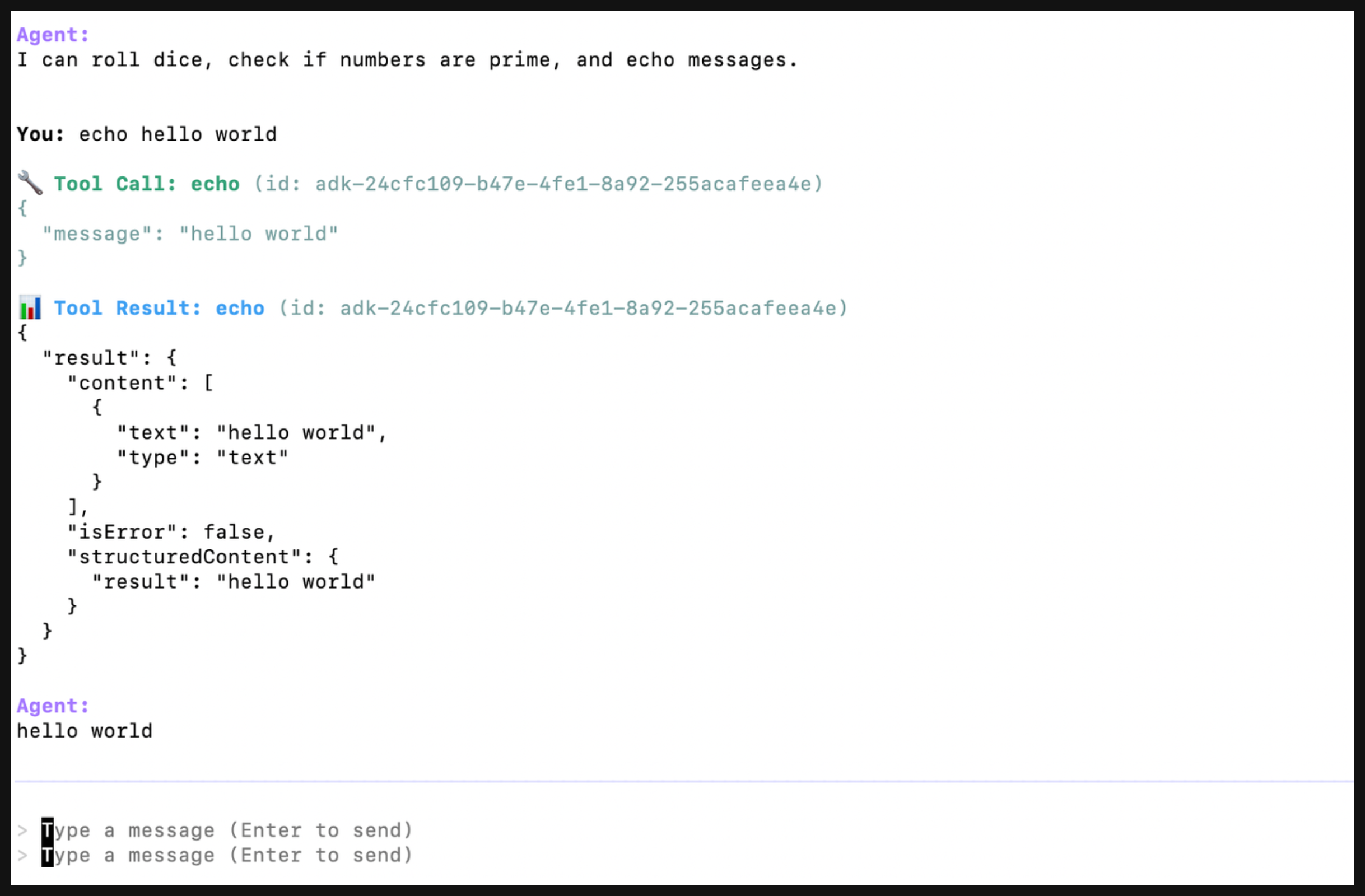

  8. Try out the echo tool by entering echo <string>, such as echo hello world. Verify that you see the MCP tool call and that the agent returns hello world.

Cleanup

To remove the MCP server tool, edit the agent.yaml definition and remove the MCP server reference. Then, re-build the agent and run it.
